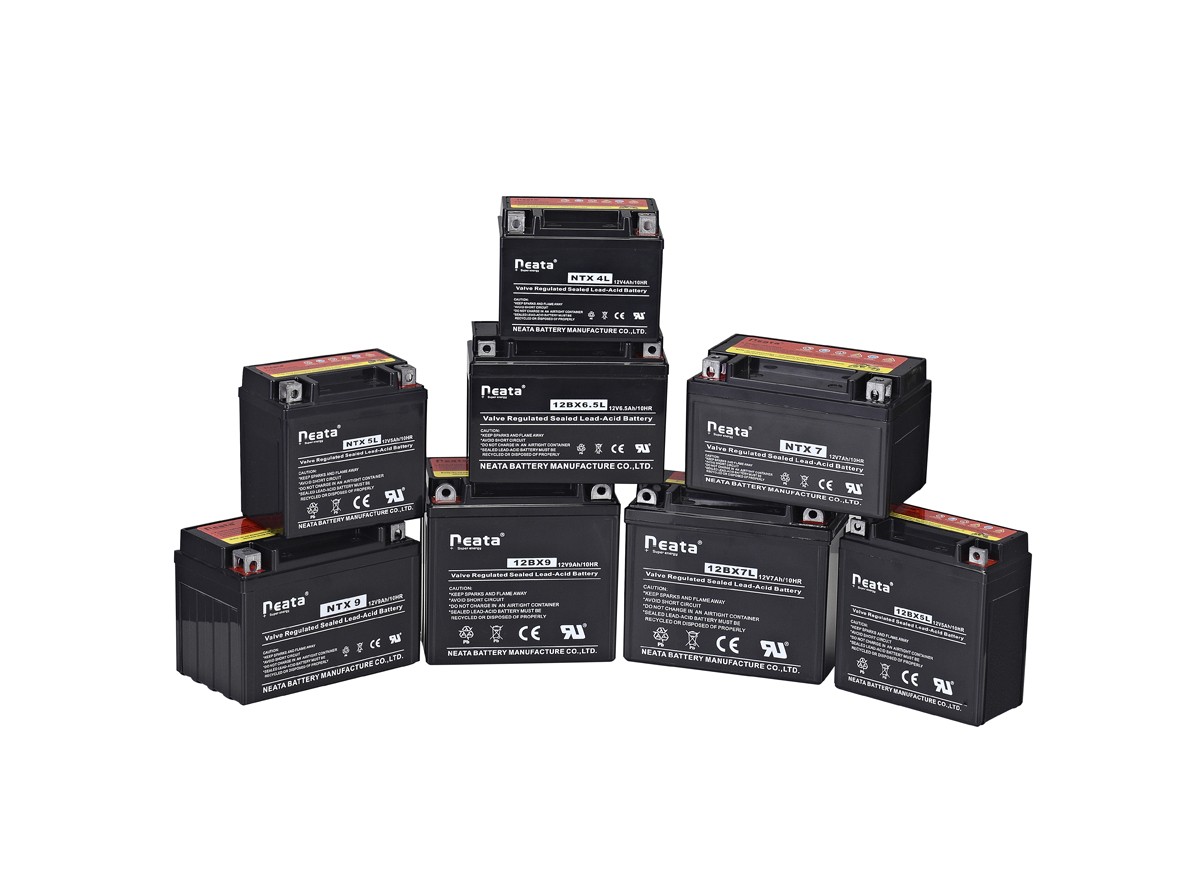

Power & Start EV Series
Designed for deep cycle applications such as electric vehicles,
it has good deep discharge performance, long cycle life and vibration resistance.
Lean liquid design, sealed and maintenance-free.
+ Ultra-long discharge characteristics
+ For backup and energy storage power use
+Special plate design, long cycle life
+ Large capacity, reducing the risk of thermal runaway, not easy to dry up, can be
+ Use in bad environment
+ high energy density
+ good deep discharge performance
No | Model | Dimension(mm) | Weight (Kg) | Plate No | formal | |
Postive Plates | Nagitive Plates | |||||
1 | YB2.5 | 80*77*104 | 1.1 | T1.3B | 2 | 3 |
2 | YT4 | 113*70*89 | 1.4 | T1.3B | 3 | 4 |
3 | YT5 | 113*70*109 | 1.8 | T1.6A | 3 | 4 |
4 | 12N5 | 120*61*131 | 1.9 | MT1.7A | 3 | 4 |
5 | 12N6.5 | 139*66*102 | 1.8 | T1.6 | 3 | 4 |
6 | 12N7L | 136*76*126 | 2.58 | T2.3A | 3 | 4 |
7 | 12N7B | 149*60*129 | 2.15 | MT1.7 | 4 | 4 |
8 | YT7 | 151*87*94 | 2.43 | T1.5B | 4 | 5 |
9 | L7 | 113*70*130 | 2.5 | D3 | 3 | 4 |
10 | 12N9 | 136*76*133 | 2.65 | D3 | 3 | 4 |
11 | YT9 | 151*87*105 | 2.6 | D3 | 3 | 4 |
12 | YT12L | 151*87*131 | 3.2 | D3 | 4 | 5 |
13 | YT14L | 151*87*148 | 3.6 | T3.0 | 3 | 4 |
14 | 32A-F | 187*125*174 | 6 | T3.5 | 4 | 5 |
15 | 36A-F | 195*127*220 | 8.8 | W7 | 4 | 4 |
