Energy storage is configured differently depending on the needs of the home, the battery capacity is 5.12kWh to 20.48kWh.

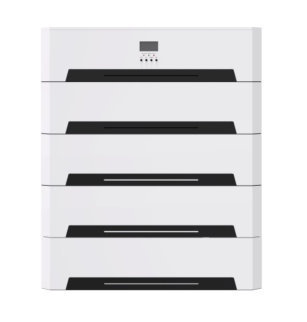

with different types, such as power wall,standing stacable etc
Our Battery is Best for home emergency power storage as solar battery.
Neata offer a one-stop service system that can manage your solar home battery storage system more conveniently.
Flexible modular system can bedesigned based on house daily consumption.
The perfect emergency energy solution for villas, apartments, hotels, shopping centers.
| SESS48-5.0S-S1 | SESS48-10.0S-S1 | SESS48-15.0S-S1 | SESS48-20.0S-S1 | ||
| BATTERY | Battery Module | 1 | 2 3 | 4 | |
| Battery Energy | 5.12kWh | 10.24kWh | 15.36kWh | 20.48kWh | |
| Battery Capacity | 100AH | 200AH | 300AH | 400AH | |
| Weight | 80kg | 133kg | 186kg | 239kg | |
| Dimension L× D× H | 710×450×400 | 710×450×600 | 710×450×800 | 710×450×1000 | |
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | |
| Battery Rated Voltage | 51.2V | 51.2V | 51.2V | 51.2V | |
| Battery Working Voltage Range | 44.8 ～ 57.6V | 44.8 ～ 57.6V | 44.8 ～ 57.6V | 44.8 ～ 57.6V | |
| Maximum Charging Current | 100A | 100A | 100A | 100A | |
| Maximum Discharging Current | 100A | 100A | 100A | 100A | |
| DOD | 80% | 80% | 80% | 80% | |
| Parallel Quantity | 1 | 2 | 3 | 4 | |
| Designed Life-span | 15years | 15years | 15years | 15years | |
| PV CHARGE | Solar Charge Type | MPPT | MPPT | MPPT | MPPT |
| Maximum Output Power | 5KW | 5KW | 5KW | 5KW | |
| PV Charging Current Range | 0~80A | 0~80A | 0~80A | 0~80A | |
| PV Operating Voltage Range | 120~500V | 120~500V | 120~500V | 120~500V | |
| MPPT Voltage Range | 120~450V | 120~450V | 120~450V | 120~450V | |
| AC CHARGE | Maximum Charge Power | 3150W | 3150W | 3150W | 3150W |
| AC Charging Current Range | 0 ~ 60A | 0 ~ 60A | 0 ~ 60A | 0 ~ 60A | |
| Rated Input Voltage | 220/230Vac | 220/230Vac | 220/230Vac | 220/230Vac | |
| Input Voltage Range | 90~280Vac | 90~280Vac | 90~280Vac | 90~280Vac | |
| INVERTER OUTPUT | Rated Output Power | 5KW | 5KW | 5KW | 5KW |
| Maximum Peak Power | 10KVA | 10KVA | 10KVA | 10KVA | |
| Power Factor | 1 | 1 | 1 | 1 | |
| Rated Output Voltage (Vac) | 230Vac | 230Vac | 230Vac | 230Vac | |
| Frequency | 50Hz | 50Hz | 50Hz | 50Hz | |
| Auto Switch Period | ＜15ms | ＜15ms | ＜15ms | ＜15ms | |
| THD | ＜3% | ＜3% | ＜3% | ＜3% | |
| GENERAL DATA | Communication | RS485/CAN/WIFI | RS485/CAN/WIFI | RS485/CAN/WIFI | RS485/CAN/WIFI |
| Storage time / temperature | 12 months @25℃; | 12 months @25℃; | 12 months @25℃; | 12 months @25℃; | |
| Charging temperature range | 0〜45℃ | 0〜45℃ | 0〜45℃ | 0〜45℃ | |
| Discharging temperature range | ‘-10〜45℃ | ‘-10〜45℃ | ‘-10〜45℃ | ‘-10〜45℃ | |
| Operation Humidity | 5% 〜 85% | 5% 〜 85% | 5% 〜 85% | 5% 〜 85% | |
| Nominal Operation Altitude | ＜2000m | ＜2000m | ＜2000m | ＜2000m | |
| Cooling Mode | Force-Air Cooling | Force-Air Cooling | Force-Air Cooling | Force-Air Cooling | |
| Noise | 60dB(A) | 60dB(A) | 60dB(A) | 60dB(A) | |
| Ingress Protection Rating | IP20 | IP20 | IP20 | IP20 | |
| Recommended Operation Environment | Indoor | Indoor | Indoor | Indoor | |
| Installation Method | Vertical | Vertical | Vertical | Vertical | |
| Certification | UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3 | ||||
